Remote Attestation for Confidential Computing

Use remote attestation to independently verify that confidential VM shapes on OCI are running in a trusted and secure environment.

About Confidential Computing and Attestation

Confidential computing protects data-in-use, by using technologies that isolate sensitive data and code in a trusted execution environment during processing to prevent unauthorized access or changes from outside of the environment. Remote attestation provides the mechanisms to verify the confidentiality and integrity of the Trusted Execution Environment (TEE).

Confidential Computing is important in environments where virtualized workloads might run on systems that use shared resources. Some hardware components provide technology to help isolate and protect workloads while they're running. These technologies add a hardware-based layer of isolation, protecting data in dedicated guest memory regions from access by the hypervisor or other guests. See Confidential Computing For Oracle Linux for more information on configuring Oracle Linux systems for confidential computing.

Remote attestation provides a mechanism for the guest VM to prove to a remote party that it's running in a trusted and secure environment. This is achieved through a series of cryptographic challenges and responses, which verify the integrity of the platform and the guest VM's memory regions. By configuring remote attestation, you independently verify that the systems where workloads are running are correctly configured to protect data during processing.

Support and Limitations

Remote attestation is supported on instances running the following Oracle Linux versions:

Oracle Linux 9
Oracle Linux 10

Note

Remote attestation requires Unbreakable Enterprise Kernel 8 (UEK 8) or later.

Instances must support AMD Secure Encrypted Virtualization - Secure Nested Paging (SEV-SNP). See confidential computing for a list of compute shapes that support this technology.

Attestation Software

Attestation software used for this solution consists of a verification server, an evidence collector, and an endorsement provisioning tool.

The components are:

veraison-services: The remote attestation verification server and associated services.
veraison-ratsd: The remote attestation evidence collector.
cocli: An endorsement provisioning tool.

Install and configure the attestation software on the instances according to their roles in remote attestation.

Attestation Roles

Attestation roles define the different actors or entities involved in remote attestation and how they're related.

Core concepts used for this remote attestation framework are defined in RFC 9334: Remote Attestation Procedures (RATS) Architecture. The following key roles are defined:

Attester: An entity that creates evidence that's conveyed to a verifier in the form of claims. Claims are predefined encodings of information that can be collected about the instance.

In this case, the OCI instance that you want to verify is the attester, and runs the veraison-ratsd evidence collection service.
Verifier: An entity that appraises the validity of evidence about an attester and produces attestation results. Claims are appraised according at an appraisal policy that can use endorsements provisioned on the verifier to help evaluate evidence and establish trust. Policies are defined by the verifier owner.

In this case, the verifier is an instance running veraison-services.
Relying Party: An entity that depends on the validity of information about an attester for purposes of reliably applying application-specific actions. The relying party might be a server or an instance that trusts the verifier to securely provide attestation results for an attester.

In this case, the relying party is any instance configured appropriately to open a TLS-secured connection to the verifier over HTTPS, and which is configured with an appraisal policy based on the results provided by the veraison-services.
Relying Party Owner: An entity authorized to configure an appraisal policy for attestation results in a relying party. Setup of a relying party owner is outside of the scope of this documentation.
Verifier Owner: An entity authorized to configure an appraisal policy for evidence in a verifier. The verifier owner can also provision the verifier with endorsements.

In this case, the verifier owner can provision the veraison-services with endorsements by using the cocli provisioning tool.
Endorser: An entity whose endorsements help verifiers appraise the authenticity of evidence and infer further capabilities of the attester. Because evidence about trustworthiness is complex, a verifier can use trusted endorsements provided by manufacturers, distributors, or device owners to evaluate the evidence provided by an attester.

In this case, the endorser might be the supplier of software artifacts.
Reference Value Provider: An entity whose reference values help verifiers appraise evidence to decide if acceptable known claims have been recorded by the attester. Similar to endorsements, trusted reference values are provided by manufacturers, distributors, or device owners, and can be used by a verifier to help evaluate evidence provided by an attester.

In this case, the endorser might be a hardware vendor, such as AMD.

These roles aren't always mutually exclusive, and an entity can take on several roles at the same time.

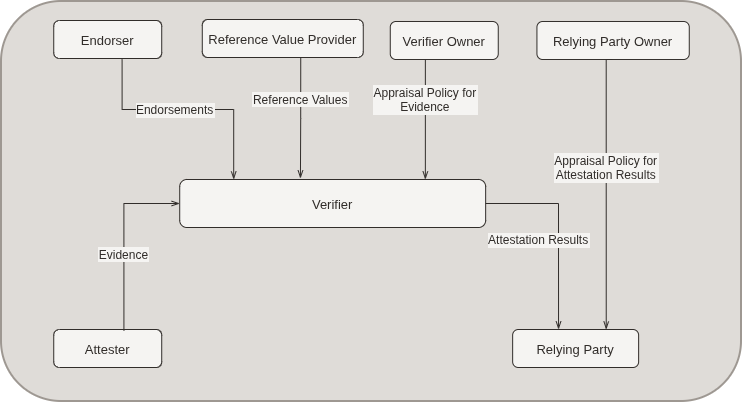

The figure illustrates the attestation architecture proposed by IETF Remote Attestation Procedures (RATS) working group. The top row shows Endorser, Reference Value Provider, Verifier Owner, and Relying Party Owner, each providing inputs (endorsements, reference values, and appraisal policies) to a central Verifier box. The bottom row shows an Attester sending evidence to the Verifier, and a Relying Party receiving attestation results from the Verifier. Key flows indicate how information and policies move between roles to support verification and decision-making.

Setting Up Remote Attestation Components

Remote attestation components require set up and configuration on several instances within the infrastructure.

For remote attestation, you must set up components and perform configuration steps for each of the following instances:

All attester systems or OCI instances that must provide evidence that they're running in a trusted execution environment.
A verifier instance that can evaluate the evidence provided by attester instances and which can be configured for vendor or third-party endorsements.
Any relying party instances that need to validate an attester instance against the verifier.

Note

All components in a remote attestation environment must have network access to the TCP ports that are used for this service. If you have configured VCN security rules or security lists, you must ensure that these are correctly configured.

See Access and Security for more information.

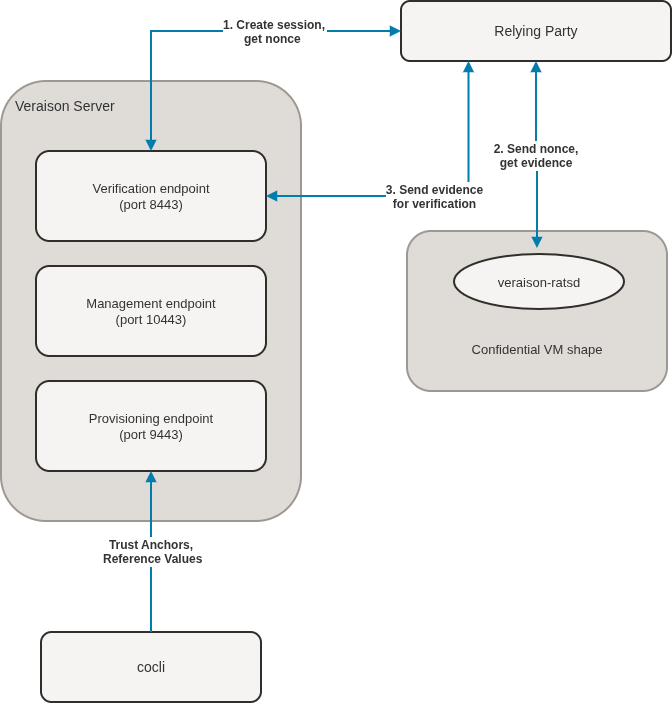

The following diagram shows the typical relationship and workflow between attestation components:

The The figure illustrates the attestation component workflow. The figure shows the Relying Party, the Verifier Server, and a Confidential VM Shape. The Verifier server includes three endpoints: Verification (port 8443), Management (port 10443), and Provisioning (port 9443). The Confidential VM Shape includes the veraison-ratsd service. A bidirectional arrow connects the Relying Party to the Verification endpoint, with the text: 1. Create session, get nonce. A bidirectional arrow connects the Relying Party to the veraison-ratsd service on the Confidential VM Shape, with the text: 2. Send nonce, get evidence. A bidirectional arrow connects the Relying Party to the Verification endpoint, with the text: 3. Send evidence for verification. A cocli entity connects with a unidirectional arrow to the Provisioning endpoint with the text: Trust Anchors, Reference Values.

Required TCP Ports for Remote Attestation Components
Port	Component	Purpose
8895	veraison-ratsd (Attester)	REST API used for evidence collection and attester interaction.
8443	veraison-services (Verifier)	REST API and challenge-response endpoint used as the main verification endpoint.
9443	veraison-services (Verifier)	Endorsement provisioning API used by the cocli tool for the verifier.
10443	veraison-services (Verifier)	Verifier service API used for future expansion and supporting services.

Note

TCP port 50080 is used on the Verifier by veraison-services for inter-process communication with the veraison-vcek-cacher. Explicitly prevent external access to this port if ingress firewall rules are unrestricted.

The veraison-vcek-cacher service caches the AMD-issued VCEK (Versioned Chip Endorsement Key) certificate to minimize repeated requests to AMD's KDS (Key Distribution Service) for the same certificate.

A VCEK is a unique key provisioned per AMD processor and used to sign attestation reports for AMD SEV-SNP. It enables confidential-computing attestation by binding a VM's identity to specific hardware and firmware versions. The cached VCEK certificate contains the VCEK public key, which is used to verify signatures on SEV-SNP attestation reports.

Set up attester instances by installing the veraison-ratsd service. See Setting Up an Attester.
Set up a verifier instance by installing and configuring the veraison-services. See Setting Up a Verifier.
Configure the TLS on any relying parties to ensure that connections are encrypted and validated when communicating with a verifier. See Configuring TLS for Relying Parties.
Provision any third-party endorsements on the verifier to help evaluate claims and evidence submitted by any attesters. See Provision Endorsements on the Verifier.

Setting Up an Attester

An attester is a confidential computing instance. Install and set up the veraison-ratsd software on each instance.

To set an instance up as an attester, perform the following steps:

Make sure the instance is created with Confidential Computing is enabled. For more information, see Confidential Computing For Oracle Linux.
Validate that the instance supports AMD SEV-SNP and that the module is enabled.
```
cat /sys/module/kvm_amd/parameters/sev_snp
```
The command must return 'Y' as a response. SEV-SNP is required for confidential computing, without SEV-SNP the instance isn't suitable for remote attestation.

If the instance doesn't include SEV-SNP, confirm that the instance is running on a supported UEK version and compute shape. See Support and Limitations for more information.
Ensure that the oci_included yum repository is enabled on the system. This repository is enabled by default in Oracle Linux platform images.
- On Oracle Linux 10, run:
```
sudo dnf config-manager --enable ol10_oci_included
```
- On Oracle Linux 9, run:
```
sudo dnf config-manager --enable ol9_oci_included
```
Install the veraison-ratsd package.
```
sudo dnf install -y veraison-ratsd
```
Verify that the veraison-ratsd service is enabled and running on the system.
```
sudo systemctl enable --now veraison-ratsd
sudo systemctl status veraison-ratsd
```
Configure firewall rules to allow systems to connect to the veraison-ratsd service.
```
sudo firewall-cmd --permanent --add-port=8895/tcp
sudo firewall-cmd --reload
```
By default the veraison-ratsd service runs on TCP port 8895.

Setting Up a Verifier

A verifier confirms the evidence supplied by the attester. The verifier need not be installed on a Confidential Computing instance, but it is recommended. Install and set up the veraison-services software on the instance.

To set an instance up as a verifier, perform the following steps:

Ensure that the oci_included yum repository is enabled on the system. This repository is enabled by default in Oracle Linux platform images.
- On Oracle Linux 10, run:
```
sudo dnf config-manager --enable ol10_oci_included
```
- On Oracle Linux 9, run:
```
sudo dnf config-manager --enable ol9_oci_included
```
Install the veraison-services package.
```
sudo dnf install -y veraison-services
```
Configure veraison-services TLS certificates.
You can either use the self-signed certificates that are generated when the service is installed, or you can install certificates signed by a Certificate Authority (CA). If you use the self-signed certificates, you might need to perform an extra configuration step on any relying parties.
- Use the self-signed certificates:
  1. Copy the self-signed certificate root CA certificate to the system's CA trust anchors:
    sudo cp /etc/veraison-services/certs/rootCA.crt /etc/pki/ca-trust/source/anchors/
  2. Update the system's CA trust store.
    sudo update-ca-trust
  3. Update any relying parties with the self-signed certificate. See Configuring TLS for Relying Parties.
- Use CA signed certificates:
  1. Obtain individual certificates for each of the vts, provisioning and verification services from the CA, along with their public keys.
  2. Copy the three signed certificates and keys to /etc/veraison-services/certs.
  3. Restart the server:
    sudo veraison -s stop sudo veraison -s start
Verify that the veraison-services are enabled and running on the system, and that the system can reach the AMD Key Distribution Server (KDS):
```
sudo systemctl enable --now veraison-services
sudo veraison -s status
curl -v https://kdsintf.amd.com
```

Configure firewall rules to allow systems to connect to the veraison-services.

sudo firewall-cmd --permanent --add-port=8443/tcp
sudo firewall-cmd --permanent --add-port=9443/tcp
sudo firewall-cmd --permanent --add-port=10443/tcp
sudo firewall-cmd --reload

Configuring TLS for Relying Parties

Relying parties communicate with the verifier over HTTPS. Configure the relying party to validate TLS certificates used by the verifier.

If the verifier is using self-signed certificates, any tooling on the relying party might fail SSL/TLS validation, if the signing certificate isn't available in the system CA trust store. You can skip this step if you configured the verifier to use CA signed certificates.

Obtain the root CA certificate from the verifier instance.
On the instance running the veraison-services, the root CA certificate can be found in /etc/veraison-services/certs/rootCA.crt. You can get the root CA certificate contents by copying the output of the following command:
```
sudo cat /etc/veraison-services/certs/rootCA.crt
```
Add the contents of the root CA certificate to the relying party's CA trust anchors.
On the relying party host, create the file /etc/pki/ca-trust/source/anchors/veraison-services.crt to contain the root CA certificate contents. Use a system text editor to paste the contents that you copied in the previous step.
Rebuild the relying party host's CA trust store.
```
sudo update-ca-trust
```

Provision Endorsements on the Verifier

You can load endorsements to the verifier system by using the cocli tool.

Endorsements and reference values are represented in a Concise Reference Integrity Manifest (CoRIM) data model that's shipped in Concise Binary Object Representation (CBOR) format. The cocli tool is used to work with CoRIM endorsement files and can perform various actions including submitting the endorsement to a verifier.

The cocli tool can be run on any system that can connect to the verifier that's running the veraison-services. For simplicity, run this tool on the same host as the veraison-services.

Ensure that the oci_included yum repository is enabled on the system. This repository is enabled by default in Oracle Linux platform images.
- On Oracle Linux 10, run:
```
sudo dnf config-manager --enable ol10_oci_included
```
- On Oracle Linux 9, run:
```
sudo dnf config-manager --enable ol9_oci_included
```
Install the veraison-cocli package.
```
sudo dnf install -y veraison-cocli
```
Get the endorsements that you require for attestation.
Endorsements are included in the veraison-cocli package, that you have installed, as CBOR formatted files.
Endorsement files are stored in the following paths:
- TrustAnchors: /usr/share/veraison-cocli/TA
- Reference Values: /usr/share/veraison-cocli/RV
The endorsement files are named according to the shapes that they apply to.
Note

Update the veraison-cocli package to get the latest endorsement values.
Run the cocli corim submit command to provision any endorsements on the verifier server.

For each endorsement specify the path to the TrustAnchor CBOR file and the path to the Reference Values CBOR file. See the following example for a script that provisions the endorsements:

Automatic Endorsement Provisioning

The following bash script provides an example approach to automate endorsement provisioning with the latest endorsements based on the documented procedure. Run this script on a cron job or as a systemd timer.

#!/bin/bash
sudo dnf update -y veraison-cocli

if [ $# -eq 0 ]; then
    echo "Error: Server address is required." >&2
    echo "Usage: $0 <server-IP-or-hostname>" >&2
    exit 1
fi

VERAISON_SERVER="$1"

for file in /usr/share/veraison-cocli/TA/*.cbor; do
        cocli corim submit --corim-file=$file --api-server="https://$VERAISON_SERVER:9443/endorsement-provisioning/v1/submit"\
        --media-type="application/corim-unsigned+cbor; profile=\"https://amd.com/ark\""
done

for file in /usr/share/veraison-cocli/RV/*.cbor; do
        cocli corim submit --corim-file=$file --api-server="https://$VERAISON_SERVER:9443/endorsement-provisioning/v1/submit"\
        --media-type="application/corim-unsigned+cbor; profile=\"tag:amd.com,2024:snp-corim-profile\""
done

To invoke the script, use the following syntax:

sh ./provision.sh <veraison-server-ip>

In the previous, <veraison-server-ip> is the server IP address. For example:

sh provision.sh localhost

Performing Attestation From a Relying Party

Remote attestation is performed from a relying party to decide whether evidence or claims made by an attester host are valid. Validation is performed by the verifier. All interactions are performed using the REST API endpoints for services running on the attester host and on the verifier server.

Attestation is performed by a relying party that requires that an attester host is verified before running a workload on that host. The relying party performs remote attestation by using a set of REST API calls to gather evidence, evaluate the evidence, and return a report. The process consists of three API calls:

Set up a challenge-response session on a verifier server, to obtain a verification token, known as a nonce, that can be used to tie evidence to a particular attestation report.
Get evidence from the attester host about any claims that the system is making for its execution environment.
Provide the evidence to the verifier server for evaluation and get the report to indicate whether the evidence is valid and the attester host can be trusted.

The API calls and some general approaches and examples are described. A relying party codifies these API calls to perform validation as required, so the example requests and response evaluations are intended only for illustration.

Terminology

The API interactions described use some terminology that might need further explanation.

attester host base URI

A base URI includes the scheme and the authority part of a complete URI, where the authority includes the hostname and port number that a service is listening at. In the case of an attester host, running the veraison-ratsd service, the service listens on TCP port 8895, so the attester host base URI might look as follows:

https://instance.example.com:8895

challenge-response session

Attestation is performed as a single challenge-response session, where the participants in the session use a nonce as a token to ensure that the information returned by each participant belongs to the same session and can be trusted. The session is also allocated a session ID that's used to track the different stages of the attestation process. The session ID is returned as the location header when the challenge-response session is created.

EAT attestation result

The EAT (Entity Attestation Token) Attestation Result (EAR) is a JSON Web Token (JWT) that contains the values that describe the results of the attestation in a serialized base64 encoded format. The format is described in more detail at https://datatracker.ietf.org/doc/draft-ietf-rats-ear/. The EAT attestation result is used by the relying party to decide whether the attester host can be trusted.

nonce

A nonce ("number used once") is a random or pseudo-random value that's used only once in a cryptographic communication. The nonce is typically used to prevent replay attacks, where an attacker tries to reuse a previously valid message or authentication token.

A nonce is used to ensure that the evidence provided by the attester is fresh and hasn't been tampered with. The verifier generates a nonce and sends it to the attester, who then includes the nonce in the evidence. The verifier can then verify that the evidence is authentic by checking that the nonce matches the one it generated.

verifier server base URI

A base URI includes the scheme and the authority part of a complete URI, where the authority includes the hostname and port number that a service is listening at. In the case of the verifier server, running the veraison-services, the service listens on TCP port 8443, so the verifier server base URI might look as follows:

https://veraison-services.example.com:8443

Create a Challenge-Response Session

API call to create a challenge-response session for remote attestation.

Request

To create a challenge-response session, send a POST request to the following endpoint on the verifier server base URI:

POST /challenge-response/v1/newSession

The POST request can include the following mutually exclusive GET variables:

nonce: a pre-generated and URL-safe nonce. You can generate a nonce by running:
```
nonce=$(openssl rand 64 | openssl base64 | tr '+/' '-_' | tr -d '=' | head -c 64)
```
nonceSize: preferably set to 64 for a 64 byte nonce. Use this option if you need the service to generate a nonce for you. The nonce is returned in the response body, but note that the nonce that's returned isn't URL safe and you need to clean it for use in other requests during the challenge-response session.

Response

The response includes a location header entry, that's used to track a session when performing other interactions with the verifier server:

location: session/657f1750-7916-11f0-a190-333334633039

The response body contains the nonce, expiry time, and a list of accepted formats. For example:

{
 "status": "waiting",
 "nonce":  "oWTtIjdJf8CR+ASRW70UOzeFHj5SdlFLBqan10pardkBK/7lOoSLMsdvhMF0DcqTpgg4nN08Ql2MWAmLFy97cg==",
 "expiry": "2025-08-13T19:13:24.96426094Z",
 "accept": [
     "application/vnd.parallaxsecond.key-attestation.tpm",
     "application/psa-attestation-token",
     "application/eat+cwt; eat_profile=\"tag:psacertified.org,2023:psa#tfm\"",
     "application/vnd.veraison.tsm-report+cbor",
     "application/vnd.enacttrust.tpm-evidence",
     "application/eat-cwt; profile=\"http://arm.com/psa/2.0.0\"",
     "application/eat+cwt; eat_profile=\"tag:psacertified.org,2019:psa#legacy\"",
     "application/pem-certificate-chain",
     "application/vnd.veraison.configfs-tsm+json",
     "application/vnd.parallaxsecond.key-attestation.cca",
     "application/eat+cwt; eat_profile=\"tag:github.com,2025:veraison/ratsd/cmw\"",
     "application/eat-collection; profile=\"http://arm.com/CCA-SSD/1.0.0\""
 ]
}

Store the location value from the response header to use when evidence is submitted to the verifier server.

Store the nonce in HTTP response body, if you didn't pre-generate the nonce for this query. The nonce is used when gathering evidence from an attester, and appears in the attestation report returned by the attester.

Important

The nonce returned in the response isn't URL safe. If you use the nonce as included in the JSON response, clean it before using it in any other request payloads. For example, you can run:

echo "oWTtIjdJf8CR+ASRW70UOzeFHj5SdlFLBqan10pardkBK/7lOoSLMsdvhMF0DcqTpgg4nN08Ql2MWAmLFy97cg==" | tr '+/' '-_' | tr -d '='

Example Request

The following example command shows how to generate the nonce for a new session.

curl -X POST https://veraison-services.example.com:8443/challenge-response/v1/newSession?nonceSize=64

Output might appear as follows:

HTTP/2 201
content-type: application/vnd.veraison.challenge-response-session+json
location: session/657f1750-7916-11f0-a190-333334633039
content-length: 837
date: Thu, 14 Aug 2025 13:55:54 GMT

{"status":"waiting",
 "nonce":"oWTtIjdJf8CR+ASRW70UOzeFHj5SdlFLBqan10pardkBK/7lOoSLMsdvhMF0DcqTpgg4nN08Ql2MWAmLFy97cg==",
 "expiry":"2025-08-14T13:58:24.75546442Z","accept":["application/vnd.parallaxsecond.key-attestation.cca",
 "application/eat+cwt; eat_profile=\"tag:github.com,2025:veraison/ratsd/cmw\"",
 "application/eat-collection; profile=\"http://arm.com/CCA-SSD/1.0.0\"","application/vnd.parallaxsecond.key-attestation.tpm",
 "application/psa-attestation-token","application/eat+cwt; eat_profile=\"tag:psacertified.org,2023:psa#tfm\"",
 "application/vnd.veraison.tsm-report+cbor","application/vnd.enacttrust.tpm-evidence",
 "application/eat-cwt; profile=\"http://arm.com/psa/2.0.0\"","application/eat+cwt; eat_profile=\"tag:psacertified.org,2019:psa#legacy\"",
 "application/pem-certificate-chain","application/vnd.veraison.configfs-tsm+json"]}

Get Evidence From an Attester

API call to get evidence from the veraison-ratsd service on the attester host.

Request

To get evidence from from the veraison-ratsd service, send a POST request to the following endpoint on the attester host base URI:

POST /ratsd/chares

The request body must contain the URL-safe nonce used in the challenge response session.

{
  "nonce": "oWTtIjdJf8CR-ASRW70UOzeFHj5SdlFLBqan10pardkBK_7lOoSLMsdvhMF0DcqTpgg4nN08Ql2MWAmLFy97cg"
}

Response

The response contains the evidence in the format specified in the previous step.

{"cmw":"eyJfX2Ntd2NfdCI6InRhZzpnaX29uIiwiZXlKaGRYaGliRzl..9pSm1ZV3RsWEc0aWZRIl19",
 "eat_nonce":"TUlEQk5IMjhpaW9pc2pQeXh4eHh4eHh4eHh4eHh4eHhNSURCTkgyOGlpb2lzalB5eHh4eHh4eHh4eHh4eHh4eA",
 "eat_profile":"tag:github.com,2024:veraison/ratsd"}

The value of the cmw key is a serialization of the evidence claim as a JSON Web Tokens (JWT). You can store the complete output of the response to this query and submit it as is for validation by the verifier server.

Example Request

The following example command shows how to get evidence from an attester host, by providing the session nonce.

curl -X POST http://instance.example.com:8895/ratsd/chares \
 -H "Content-type: application/vnd.veraison.chares+json" \
 -d '{"nonce": "oWTtIjdJf8CR+ASRW70UOzeFHj5SdlFLBqan10pardkBK/7lOoSLMsdvhMF0DcqTpgg4nN08Ql2MWAmLFy97cg=="}' \
 -o evidence

The output from this command is stored in a file named evidence. You can use this file when submitting a request for an attestation result from the verifier.

For an end to end example, see the /usr/share/doc/veraison-ratsd/examples/attestation-sample.py available on the veraison-ratsd version 1.0.9 or later.

Get Attestation Result From Verifier

API call to get attestation result from veraison-services on the verifier.

Request

To get the attestation result from the veraison-services, send a POST request to the following endpoint on the verifier host URI authority:

POST /challenge-response/v1/<session_location>

The request endpoint includes the session_location that's returned in the header of the original challenge response when the nonce was generated by the verifier server. See Get Evidence From an Attester Create a Challenge-Response Session.

The request header includes a Host value that matches the attester host base URI , a Content-Type set to the format that the evidence was collected as, and an Accept value to describe the intended response format. For example:

Host: instance.example.com:8443
Content-Type: application/eat+cwt; eat_profile="tag:github.com,2025:veraison/ratsd/cmw"
Accept: application/vnd.veraison.challenge-response-session+json

The request body payload must contain the evidence obtained from the attester running the veraison-ratsd service. See Get Evidence From an Attester.

Response

The response contains the evidence, and the EAT attestation result.

{
 "status": "complete",
 "nonce": "oWTtIjdJf8CR+ASRW70UOzeFHj5SdlFLBqan10pardkBK/7lOoSLMsdvhMF0DcqTpgg4nN08Ql2MWAmLFy97cg==",
 "expiry": "2025-08-14T16:44:22.733250762Z",
 "accept": [
  "application/eat-cwt; profile=\"http://arm.com/psa/2.0.0\"",
  "application/eat+cwt; eat_profile=\"tag:psacertified.org,2019:psa#legacy\"",
  "application/pem-certificate-chain",
  "application/vnd.veraison.configfs-tsm+json",
  "application/vnd.parallaxsecond.key-attestation.cca",
  "application/eat+cwt; eat_profile=\"tag:github.com,2025:veraison/ratsd/cmw\"",
  "application/eat-collection; profile=\"http://arm.com/CCA-SSD/1.0.0\"",
  "application/vnd.parallaxsecond.key-attestation.tpm",
  "application/psa-attestation-token",
  "application/eat+cwt; eat_profile=\"tag:psacertified.org,2023:psa#tfm\"",
  "application/vnd.veraison.tsm-report+cbor",
  "application/vnd.enacttrust.tpm-evidence"
 ],
 "evidence": {
  "type": "application/eat+cwt; eat_profile=\"tag:github.com,2025:veraison/ratsd/cmw\"",
  "value": "eyJjbXciOiJleUpmWDJOdGQyTmZkQ0k2SW5SaFp6cG5hWF...DI0OnZlcmFpc29uL3JhdHNkIn0="
 },
 "result": "eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJ...t4sZ_dmpPK-BX8tnCmdmCyqoMUg"
}

Example Request

In the following example request, the data payload is loaded from a file named evidence which was obtained from the example request in Get Evidence From an Attester. Note that loading data from a file, when using the curl command, requires the use of the @ character preceding the file name.

curl -X POST https://veraison-services.example.com:8443/challenge-response/v1/session/94e9ea97-792d-11f0-a190-333334633039 \
 -H "Host: instance.example.com:8443" \
 -H "content-type: application/eat+cwt; eat_profile=\"tag:github.com,2025:veraison/ratsd/cmw\"" \
 -H "accept: application/vnd.veraison.challenge-response-session+json" \
 --data "@evidence"

Example Response Evaluation

In the case of the response from the provided query, the result can be decoded using any JSON Web Token viewer or library to decode into standard JSON format. The decoded output might appear as follows:

{
 "ear.verifier-id": {
   "build": "N/A",
   "developer": "Veraison Project"
 },
 "eat_nonce": "oWTtIjdJf8CR+ASRW70UOzeFHj5SdlFLBqan10pardkBK/7lOoSLMsdvhMF0DcqTpgg4nN08Ql2MWAmLFy97cg==",
 "eat_profile": "tag:github.com,2023:veraison/ear",
 "iat": 1755189767,
 "submods": {
   "SEVSNP": {
    "ear.appraisal-policy-id": "policy:SEVSNP",
    "ear.status": "affirming",
    "ear.trustworthiness-vector": {
        "configuration": 0,
        "executables": 0,
        "file-system": 0,
        "hardware": 2,
        "instance-identity": 0,
        "runtime-opaque": 2,
        "sourced-data": 0,
        "storage-opaque": 0
     },
    "ear.veraison.annotated-evidence": {
      "environment": {
        "class": {
          "id": {
            "type": "oid",
            "value": "1.3.6.1.4.1.3704.3.2"
          }
        }
       },
      "measurements": [
        {
         ...
        }
      ]
     }
    }
  }
}

The evaluation of an instance for SEV-SNP trustworthiness focuses on the result for the SEVSNP submod. The ear.status can be evaluated to decide whether the attester host is running in a trusted execution environment. If marked as 'affirming', the host is trusted based on an evaluation of claims.

The ear.trustworthiness-vector describes the results for different claims that have been validated by the verifier.

`ear.trustworthiness-vector` Values
`ear.trustworthiness-vector` value	Meaning
`0`	No assertion has been made for the claim and the verifier has provided no evaluation score.
`1`	The evidence contained unknown elements which inhibited the verifier evaluation.
`2`	The verifier affirms the claim.
`>2`	Values greater than 2 indicate various levels of failure to meet the policy and a value of 99 is a complete failure.

In the example output, SEV-SNP is only tested for hardware claims and for runtime opacity. The result of 2 in each of these cases show:

hardware: The Attester has passed its hardware and firmware verifications required to show that these are genuine.
runtime-opaque: The Attester's executing Target Environment and Attesting Environments are encrypted and within a trusted execution environment opaque to the OS, virtual machine manager, and peer applications.

Oracle Cloud Infrastructure Documentation

Remote Attestation for Confidential Computing

About Confidential Computing and Attestation

Support and Limitations

Attestation Software

Attestation Roles

Setting Up Remote Attestation Components

Setting Up an Attester

Setting Up a Verifier

Configuring TLS for Relying Parties

Provision Endorsements on the Verifier

Automatic Endorsement Provisioning

Performing Attestation From a Relying Party

Terminology

Create a Challenge-Response Session

Request

Response

Example Request

Get Evidence From an Attester

Request

Response

Example Request

Get Attestation Result From Verifier

Request

Response

Example Request

Example Response Evaluation
