VCN Subnet
Using the VCN subnet subject area, you can create reports about the VCN subnet resources.
These reports enable you to track the different attributes and metrics for VCN subnet resources across tenancies and compartments.
Business Questions
The subject area can answer the following business questions:
- What is the total number of Ipv4 CIDR block created?
- What is the total number of Ipv6 CIDR block created?
- What is the total number of private IPs created?
- What is the total number of public IPs created?
- What is the total number of subnets created and associated details?
- What is the total number of VNICs created?

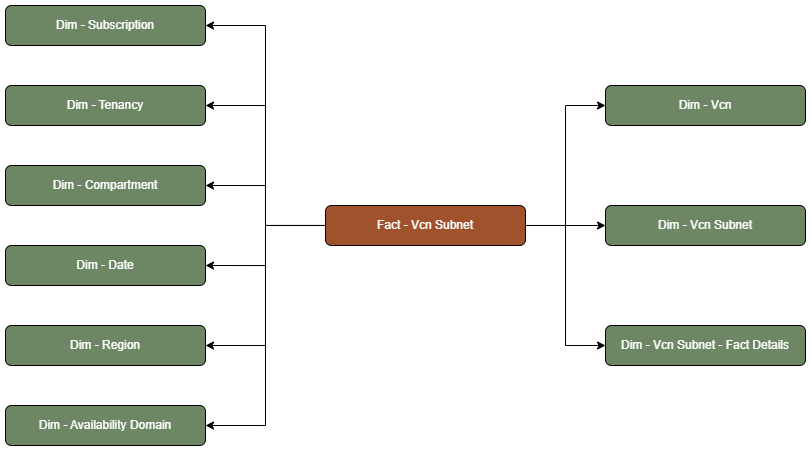

Logical Model
Metric Details
The fact folders in this subject area show the following metrics:
| Metric | Description |
|---|---|
| Ipv4 Cidr Block Count | This metric is calculated as the sum of total number of ipv4 CIDR blocks. |
| Ipv6 Cidr Block Count | This metric is calculated as the sum of total number of ipv6 CIDR blocks. |
| Private Ip Count | This metric is calculated as the sum of total number of private IPs. |
| Public Ip Count | This metric is calculated as the sum of total number of public IPs. |
| Vcn Subnet Count | This metric is calculated as the count of total records in Subnet fact. |
| Vcn Vnic Count | This metric is calculated as the sum of total number of VNICs. |
