NLB

Using the NLB subject area, you can create reports about the network Load Balancer resources.

These reports enable you to track the different attributes and metrics for network Load Balancer resources across tenancies and compartments.

Business Questions

The subject area can answer the following business questions:

  • What is the total number of backends created and its associated details?
  • What is the total number of backend sets created and its associated details?
  • What is the total number of health checkers created and its associated details?
  • What is the total number of listeners created and its associated details?
  • What is the total number of private IPs created?
  • What is the total number of public IPs created?
  • What is the total number of NLBs created?
  • What is the total number of NLB health checkers created?
  • What is the total number of NLB listeners created?
  • What is the total number of NLB backends created?

Logical Model

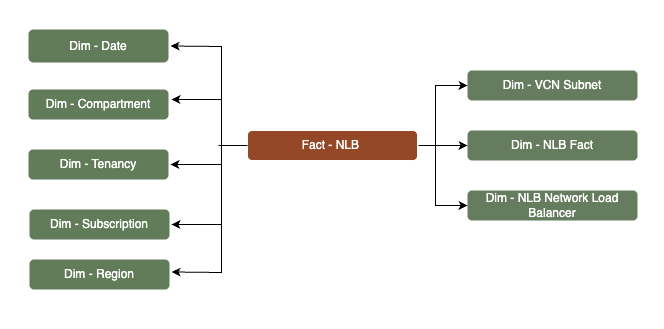

Fact table NLB connected to eight dimension tables, Subscription, Tenancy, Compartment, Date, Region, VCN Subnet, NLB Network Load Balancer and NLB - Fact.

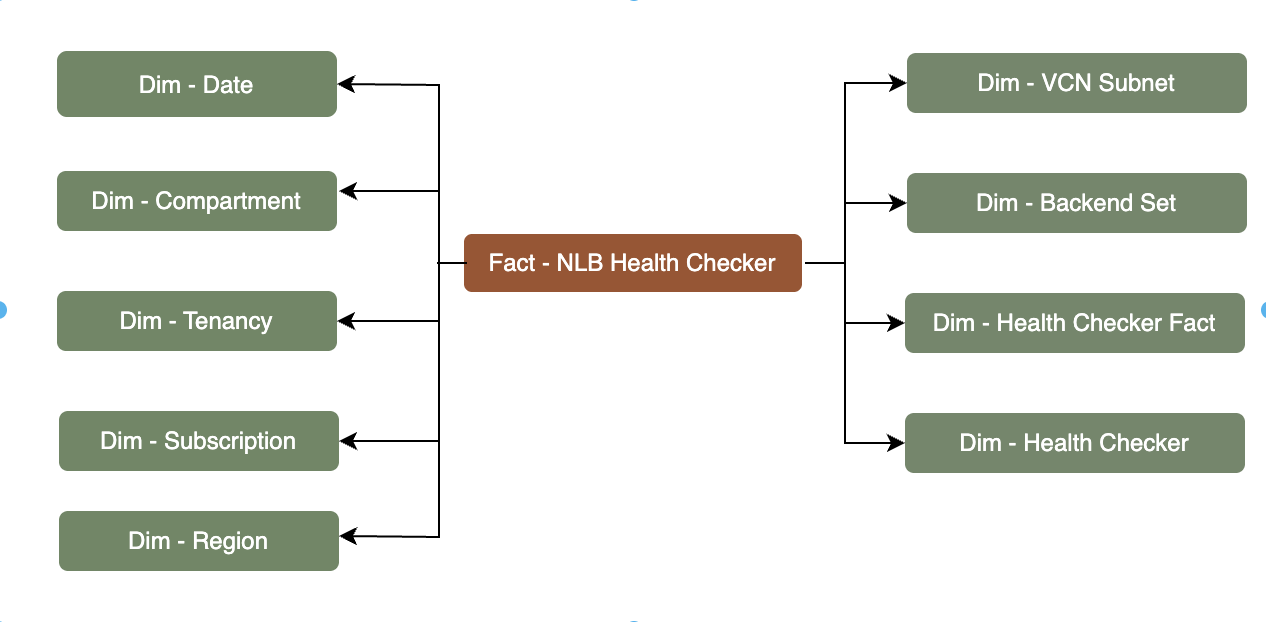

Fact table NLB connected to nine dimension tables, Subscription, Tenancy, Compartment, Date, Region, VCN Subnet, Backend Subnet, Health Checker, and Health Checker Fact.

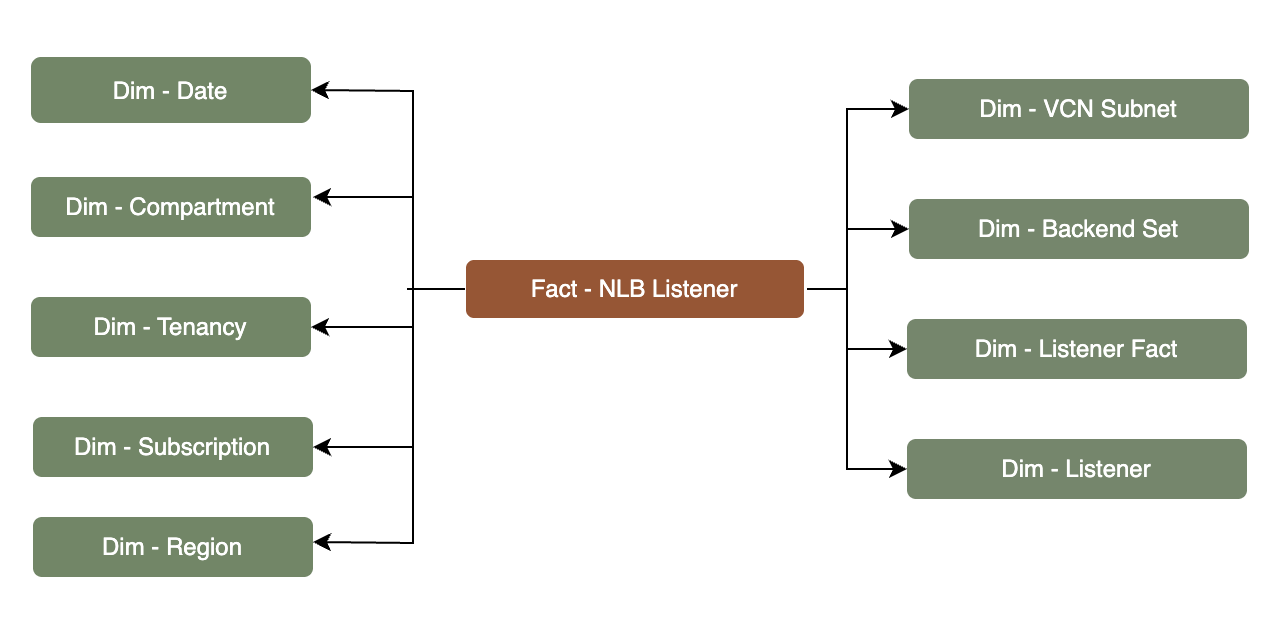

Fact table NLB connected to nine dimension tables, Subscription, Tenancy, Compartment, Date, Region, VCN Subnet, Backend Set, Listener, and Listener Fact.

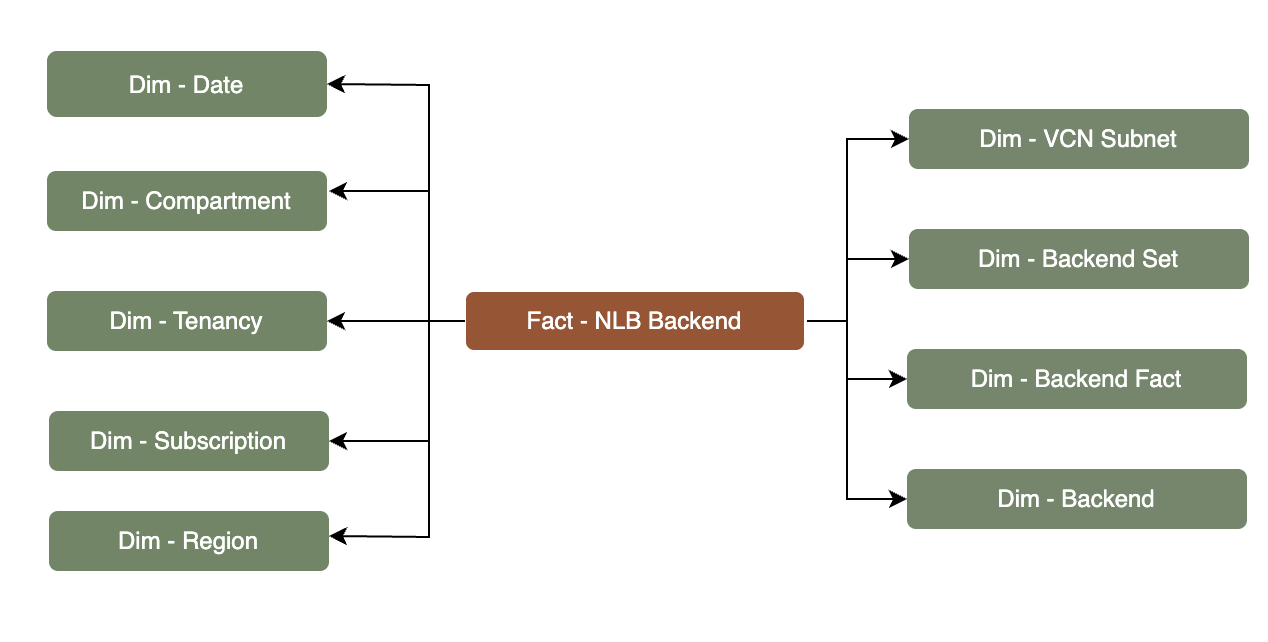

Fact table NLB connected to nine dimension tables, Subscription, Tenancy, Compartment, Date, Region, VCN Subnet, Backend Set, Backend, and Backend Fact.

Metric Details

The fact folders in this subject area show the following metrics:

Metric Details for Fact - NLB
MetricDescription
Backend CountThis metric is calculated as the sum of total number of backends.
Backend Set CountThis metric is calculated as the sum of total number of backend sets.
Health Checker CountThis metric is calculated as the sum of total number of health checker.
Listener CountThis metric is calculated as the sum of total number of listeners.
NLB CountThis metric is calculated as the count of total records in Network Load Balancer (NLB) fact.
Private IP CountThis metric is calculated as the sum of total number of private IPs.
Public IP CountThis metric is calculated as the sum of total number of public IPs.
Metric Details for Fact - NLB Health Checker
MetricDescription
Health Checker CountThis metric is calculated as the sum of total number of health checkers.
Health Checker Set CountThis metric is calculated as the sum of total number of NLB health checkers.
Metric Details for Fact - NLB Listener
MetricDescription
Listener CountThis metric is calculated as the sum of total number of listeners.
NLB Listener CountThis metric is calculated as the sum of total number of NLB isteners.
Metric Details for Fact - NLB Backend
MetricDescription
Backend CountThis metric is calculated as the sum of total number of backends.
NLB Backend CountThis metric is calculated as the sum of total number of NLB backends.
