LBaaS

Using the LBaaS subject area, you can create reports about the Load Balancer resources.

With these reports, you can track the different attributes and metrics for Load Balancer resources across tenancies and compartments. You can also see the Load Balancer IPs and identify if they're public or private IPs.

Business Questions

The subject area can answer the following business questions:

  • What is the total number of backends created?
  • What is the total number of LBaaS backends created?
  • What is the total number of subnets created?
  • What is the total number of LBaaS backends created?
  • What is the total number of health checkers created?
  • What is the total number of LBaaS health checkers created?
  • What is the total number of Listeners created?
  • What is the total number of LBaaS listeners created?
  • What is the total number of listeners created and the associated details?
  • What is the total number of private IPs created?
  • What is the total number of public IPs created?
  • What is the total number of LBaaSs created?
  • What is the IP of my Load Balancer, and is my IP public or private ?

Logical Model

An LBaaS fact table is connected to the following dimension tables:


Fact table LBaaS connected to six dimension tables, Subscription, Tenancy, Compartment, Date, LBaaS Load Balancer, and LBaaS - Fact Details.

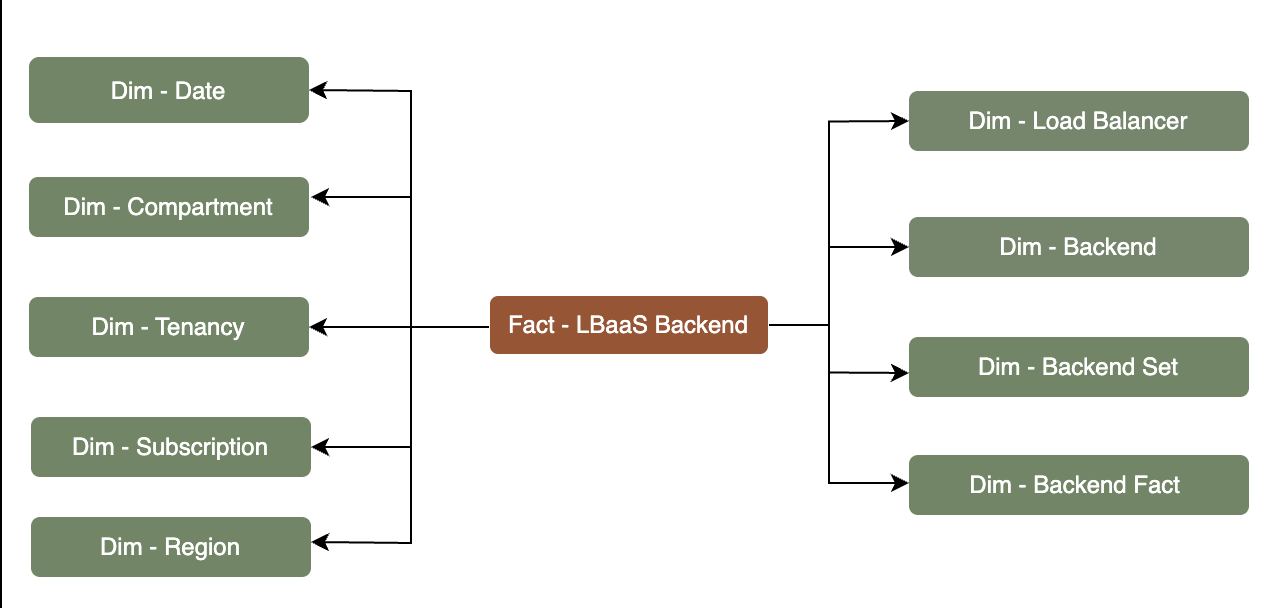

An LBaaS Backend fact table is connected to the following dimension tables:


Fact table LBaaS Backend connected to nine dimension tables, Subscription, Tenancy, Compartment, Date, Region, Load Balancer, Backend, Backend Set, and Backend Fact.

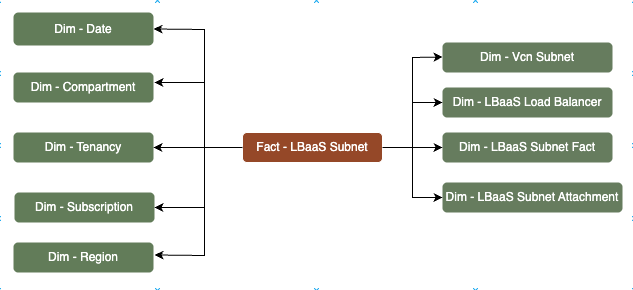

An LBaaS Subnet fact table is connected to the following dimension tables:


Fact table LBaaS Subnet connected to nine dimension tables, Subscription, Tenancy, Compartment, Date, Region, VCN Subnet, LBaaS Load Balancer, LBaaS Subnet Fact, and LBaaS Subnet Attachment.

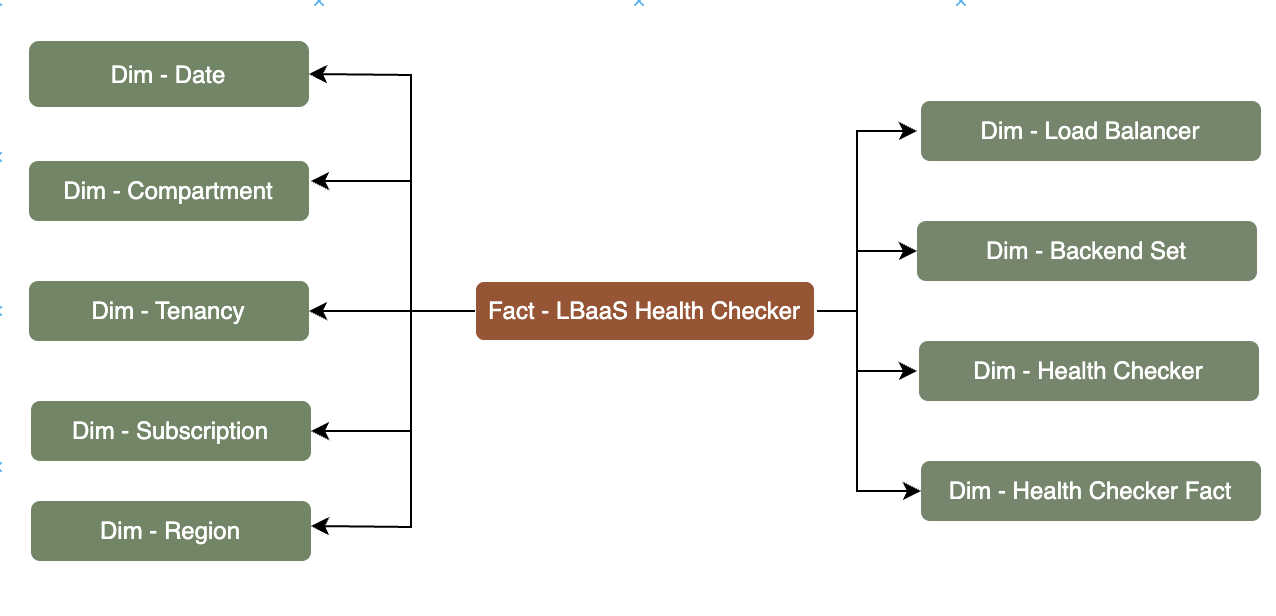

An LBaaS Health Checker fact table is connected to the following dimension tables:


Fact table LBaaS Health Checker connected to nine dimension tables, Subscription, Tenancy, Compartment, Date, Region, Load Balancer, Backend Set, Health Checker, and Health Checker Fact.

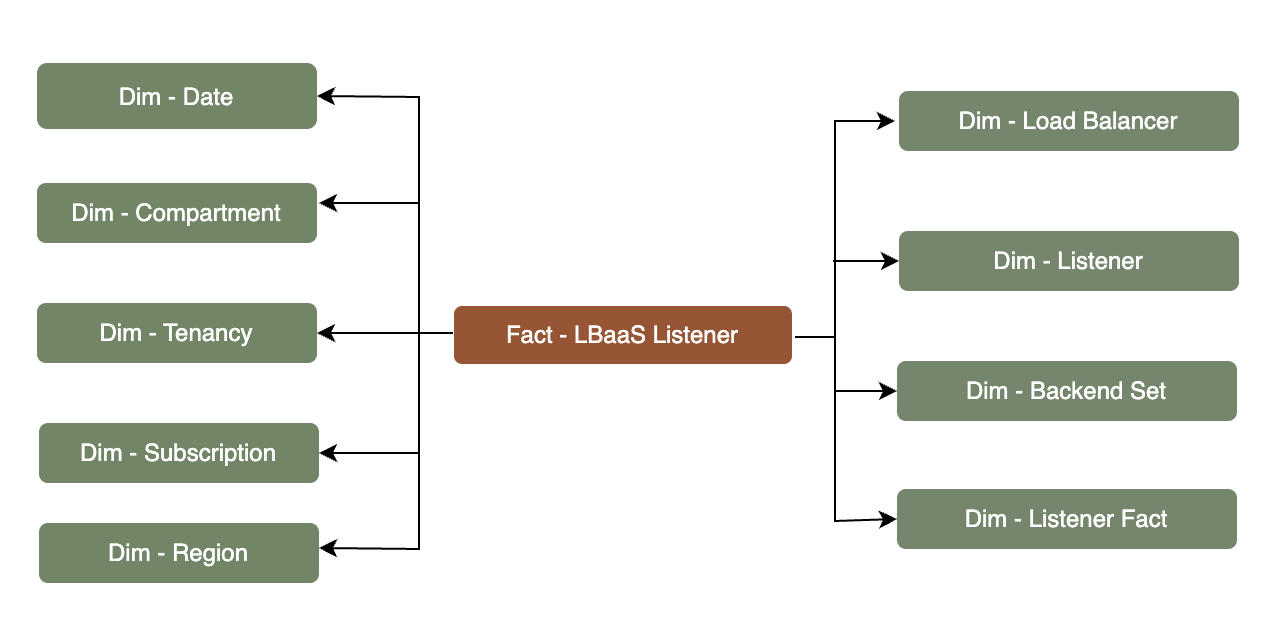

An LBaaS Listener fact table is connected to the following dimension tables:


Fact table LBaaS Listener connected to nine dimension tables, Subscription, Tenancy, Compartment, Date, Region, Load Balancer, Listener, Backend Set, and Listener Fact.

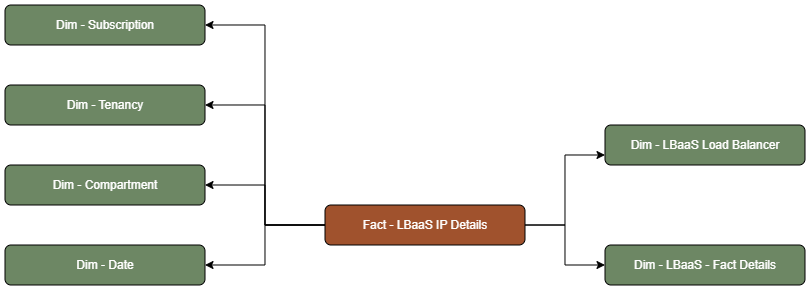

An LBaaS IP Details fact table is connected to the following dimension tables:


Fact table LBaaS IP Details connected to six dimension tables, Subscription, Tenancy, Compartment, Date, LBaaS Load Balancer, and LBaaS - Fact Details.

Metric Details

The fact folders in this subject area show the following metrics:

Metric Details for LBaas
MetricDescription
Backend CountThis metric is calculated as the sum of total number of backends.
Backend Set CountThis metric is calculated as the sum of total number of backend sets.
Health Checker CountThis metric is calculated as the sum of total number of health checker.
Lbaas CountThis metric is calculated as the count of total records in LBaaS fact.
Listener CountThis metric is calculated as the sum of total number of listeners.
Private IP CountThis metric is calculated as the sum of total number of private IPs.
Public IP CountThis metric is calculated as the sum of total number of public IPs.
Metric Details for LBaas Backend
MetricDescription
Backend CountThis metric is calculated as the sum of total number of backends.
LBasaS Backend CountThis metric is calculated as the sum of total number of LBaaS backends.
Metric Details for LBaas Subnet
MetricDescription
Subnet CountThis metric is calculated as the sum of total number of subnets.
LBaaS Subnet CountThis metric is calculated as the sum of total number of LBaaS subnets.
Metric Details for LBaas Health Checker
MetricDescription
Health Checker CountThis metric is calculated as the sum of total number of health checkers.
LBaaS Health Checker CountThis metric is calculated as the sum of total number of LBaaS health checkers.
Metric Details for LBaas Listener
MetricDescription
Listener CountThis metric is calculated as the sum of total number of Listeners.
LBaaS Listener CountThis metric is calculated as the sum of total number of LBaaS Listeners.
