Reference for File Storage

This section provides information about views within OCI Resource Analytics File Storage and their columns, data types, keys, and the referenced view and column names. The following views are available:

The suffixes in the view names designate the view type:

• FACT_V: Fact
• DIM_V: Dimension

The contents of each view and their relationships are listed in the following file: File Storage views.

Each tab in the Excel spreadsheet contains the details of a view.

This section provides diagrams that define the logical relationship of a fact table with different dimension tables.

These diagrams show the relationship of fact views with different dimension views.

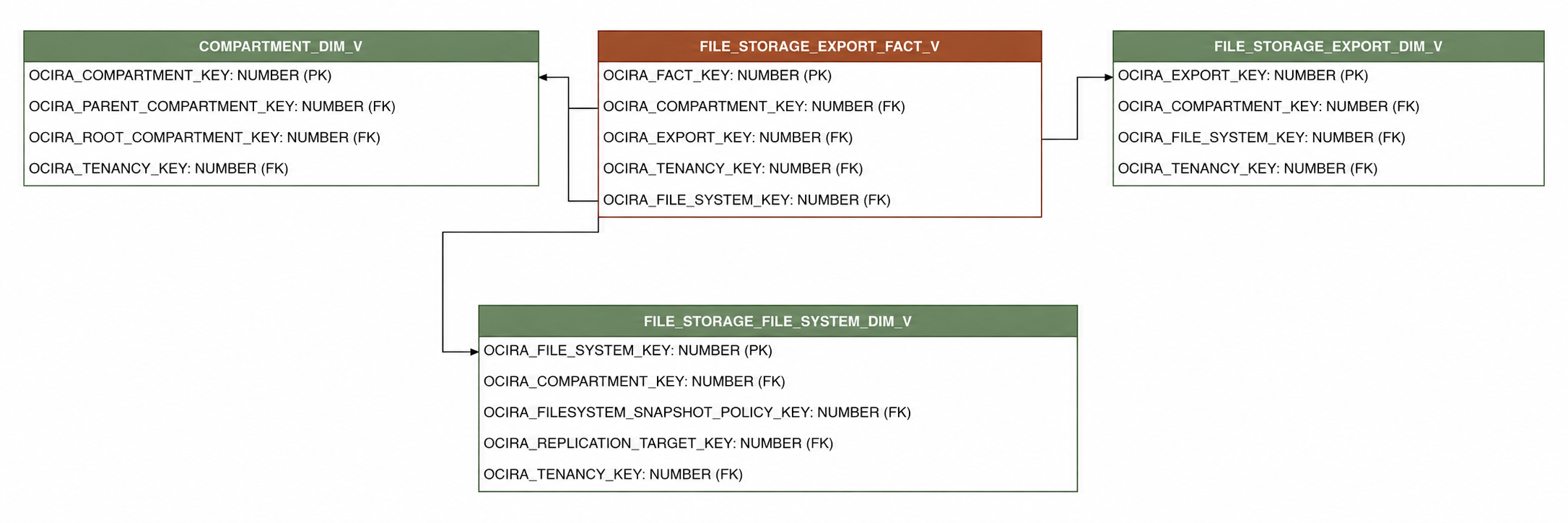

FILE_STORAGE_EXPORT_FACT_V

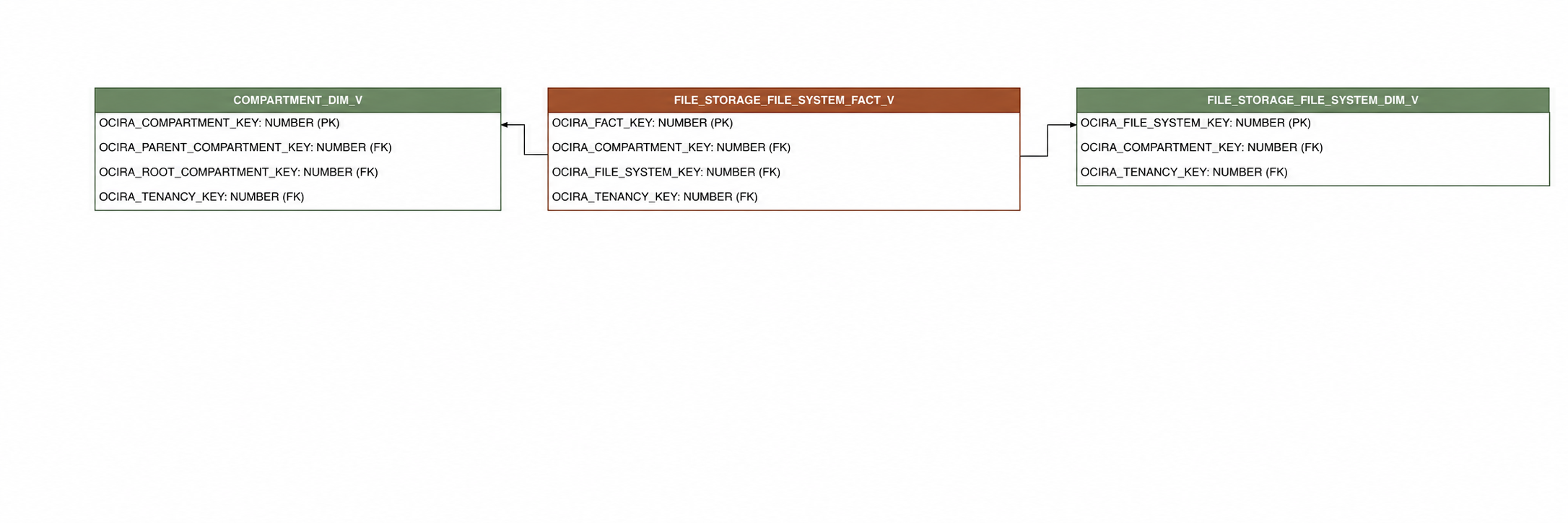

FILE_STORAGE_FILE_SYSTEM_FACT_V

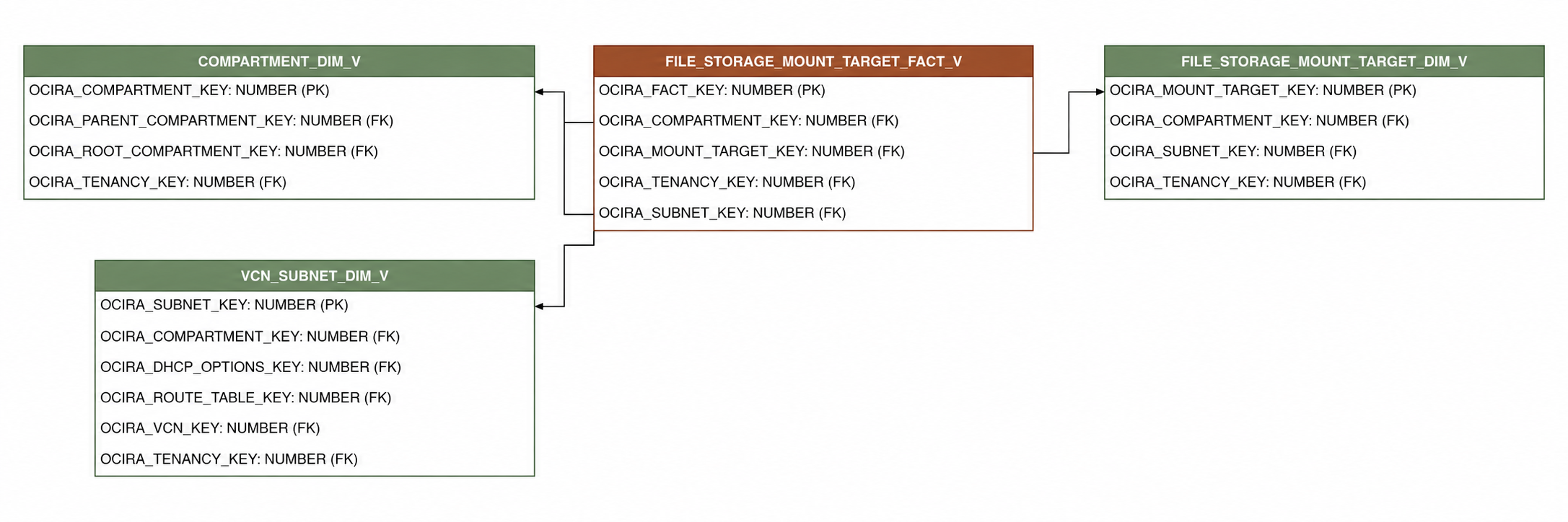

FILE_STORAGE_MOUNT_TARGET_FACT_V

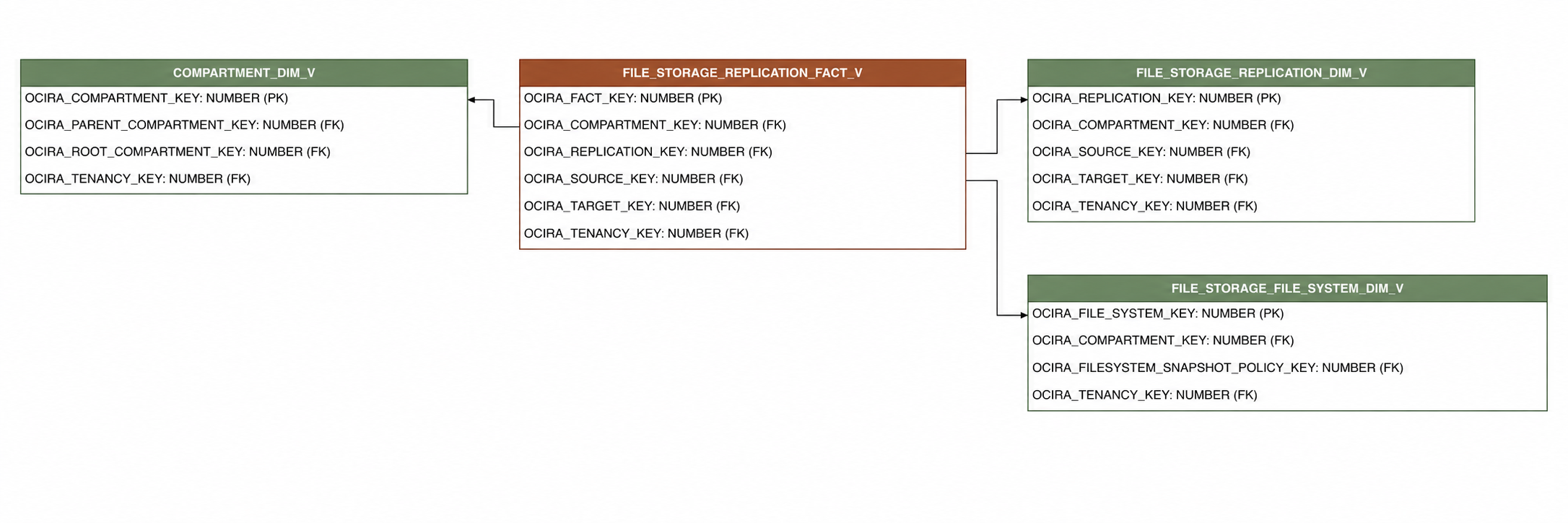

FILE_STORAGE_REPLICATION_FACT_V

Relationships exist among dimensions. Dimensions can be joined directly to each other. This diagram shows the relationship between dimension views.

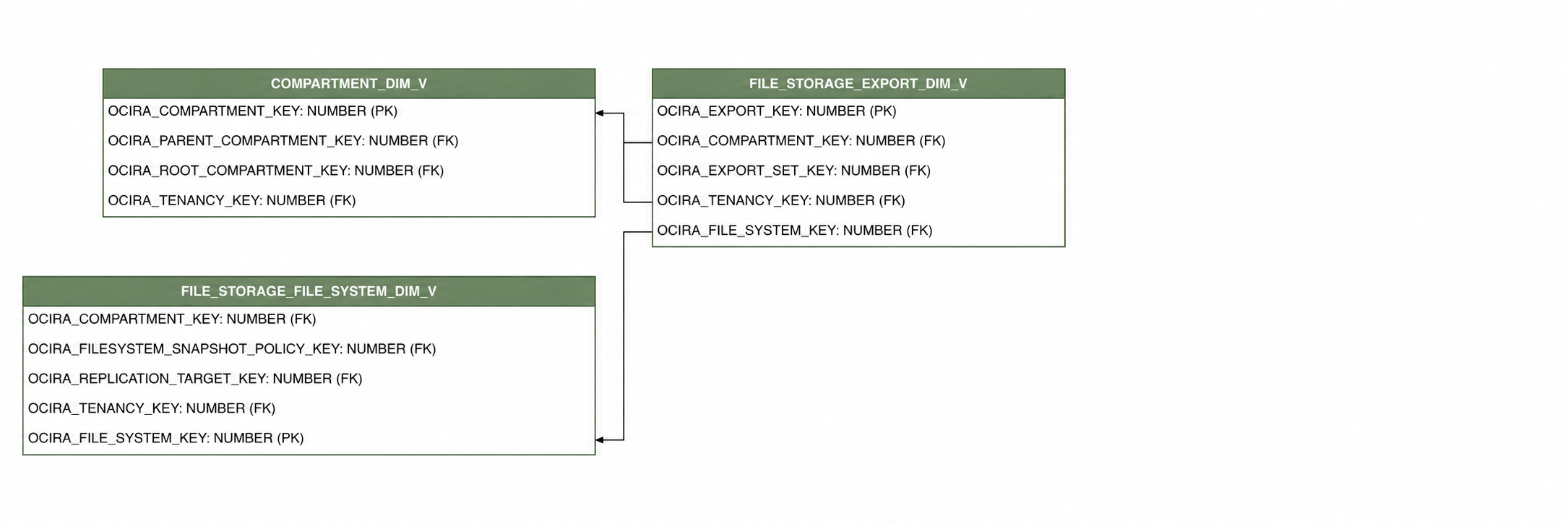

FILE_STORAGE_EXPORT_DIM_V

Sample queries for File Storage.

SELECT
    FILE_SYSTEM_ID,
    COUNT(EXPORT_ID) AS EXPORT_COUNT
FROM OCIRA.FILE_STORAGE_EXPORT_FACT_V F
GROUP BY FILE_SYSTEM_ID;

SELECT
    FILESYSTEM_SNAPSHOT_POLICY_ID,
    COUNT(FILE_SYSTEM_ID) AS FILE_SYSTEM_COUNT
FROM OCIRA.FILE_STORAGE_FILE_SYSTEM_FACT_V F
GROUP BY FILESYSTEM_SNAPSHOT_POLICY_ID;

SELECT
    SUBNET_ID,
    COUNT(MOUNT_TARGET_ID) AS MOUNT_TARGET_COUNT
FROM OCIRA.FILE_STORAGE_MOUNT_TARGET_FACT_V F
GROUP BY SUBNET_ID;

SELECT
    REPLICATION_TARGET_ID,
    COUNT(REPLICATION_ID) AS REPLICATION_COUNT
FROM OCIRA.FILE_STORAGE_REPLICATION_FACT_V F
GROUP BY REPLICATION_TARGET_ID;

SELECT
    DISPLAY_NAME,
    FILE_SYSTEM_ID,
    EXPORT_SET_ID,
    PATH,
    LIFECYCLE_STATE,
    TIME_CREATED,
    MODIFICATION_TIME,
    REGION
FROM OCIRA.FILE_STORAGE_EXPORT_DIM_V
WHERE LIFECYCLE_STATE = 'ACTIVE';

The Customer Experience Semantic Model Lineage spreadsheet and Metric Calculation Logic spreadsheet for File Storage provide an end-to-end data lineage summary report for physical and logical relationships in your data.

For more information, see Data Lineage.

This section provides information on the subject areas with data you maintain in File Storage. These subject areas, with their corresponding data, are available for you to use when creating and editing analyses and reports. The information for each subject area includes:

• Description of the subject area.

• Business questions that can be answered by data in the subject area, with a link to more detailed information about each business question.

• Job-specific groups and duty roles that can be used to secure access to the subject area, with a link to more detailed information about each job role and duty role.

• Primary navigation to the work area that's represented by the subject area.

• Time reporting considerations in using the subject area, such as whether the subject area reports historical data or only the current data. Historical reporting refers to reporting on historical transactional data in a subject area. With a few exceptions, all dimensional data are current as of the primary transaction dates or system date.

• The lowest grain of transactional data in a subject area. The lowest transactional data grain decides how data are joined in a report.

• Special considerations, tips, and things to look out for in using the subject area to create analyses and reports.

The subject area is:

• File Storage
