Reference for FastConnect

This section provides information about views within OCI Resource Analytics FastConnect and their columns, data types, keys, and the referenced view and column names. The following views are available:

The suffixes in the view names designate the view type:

• FACT_V: Fact
• DIM_V: Dimension

The contents of each view and their relationships are listed in the following file: Fast Connect views.

Each tab in the Excel spreadsheet contains the details of a view.

This section provides diagrams that define the logical relationship of a fact table with different dimension tables.

This diagrams show the relationship of fact views with different dimension views.

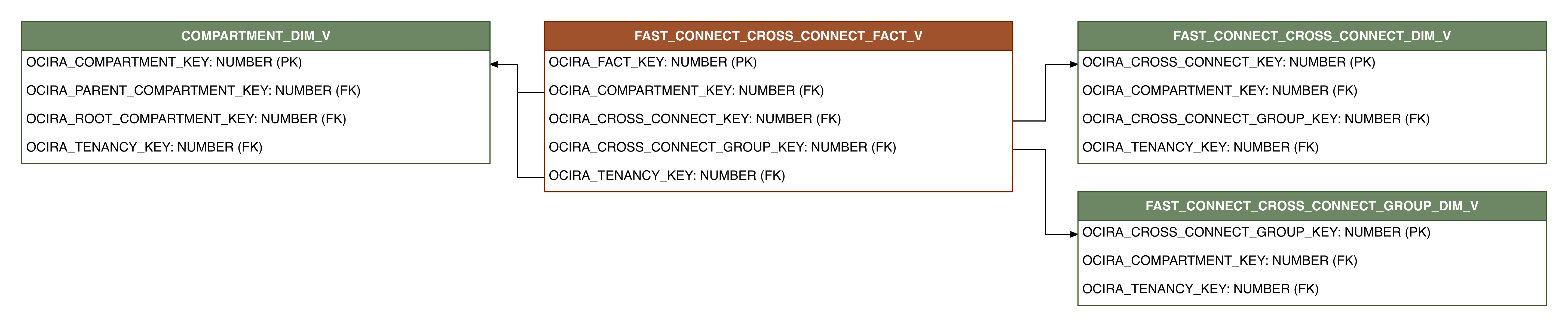

FAST_CONNECT_CROSS_CONNECT_FACT_V

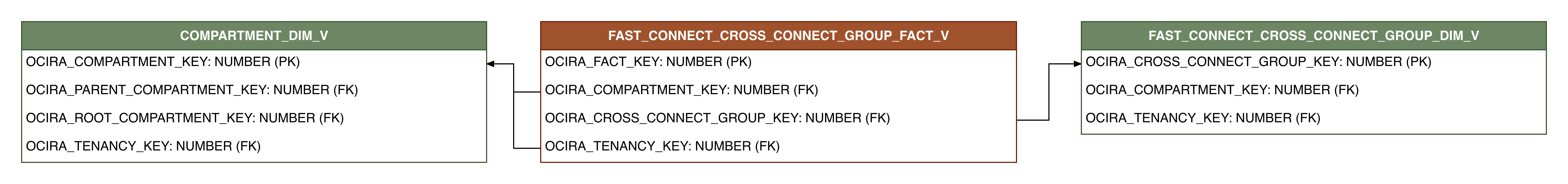

FAST_CONNECT_CROSS_CONNECT_GROUP_FACT_V

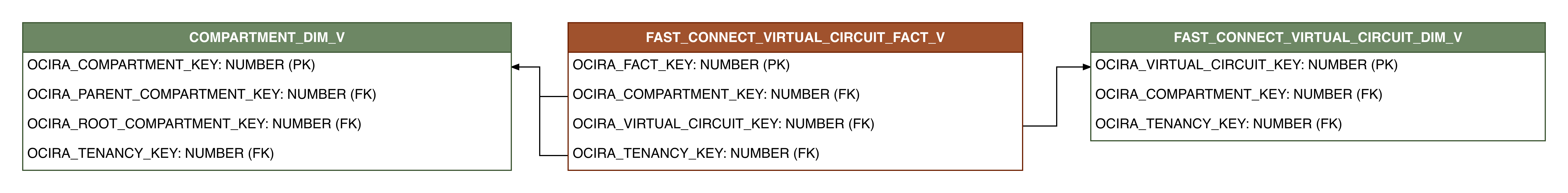

FAST_CONNECT_VIRTUAL_CIRCUIT_FACT_V

Relationships exist among dimensions. Dimensions can be joined directly to each other. This diagram shows the relationship between dimension views.

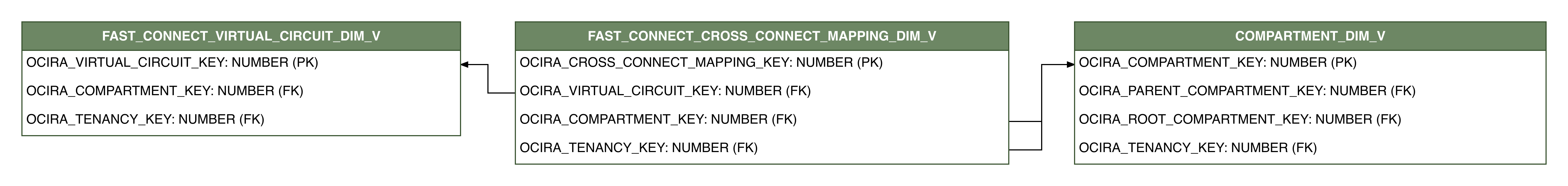

FAST_CONNECT_CROSS_CONNECT_MAPPING_DIM_V

Sample queries for FastConnect.

SELECT
    CROSS_CONNECT_GROUP_ID,
    COUNT(CROSS_CONNECT_ID) AS CROSS_CONNECT_COUNT
FROM OCIRA.FAST_CONNECT_CROSS_CONNECT_FACT_V F
GROUP BY CROSS_CONNECT_GROUP_ID;

SELECT
    CROSS_CONNECT_GROUP_ID,
    DISPLAY_NAME,
    LIFECYCLE_STATE
FROM OCIRA.FAST_CONNECT_CROSS_CONNECT_GROUP_FACT_V F
WHERE LIFECYCLE_STATE = 'ACTIVE';

SELECT
    PROVIDER_SERVICE_ID,
    COUNT(VIRTUAL_CIRCUIT_ID) AS VIRTUAL_CIRCUIT_COUNT
FROM OCIRA.FAST_CONNECT_VIRTUAL_CIRCUIT_FACT_V F
GROUP BY PROVIDER_SERVICE_ID;

SELECT
    VIRTUAL_CIRCUIT_ID,
    CROSS_CONNECT_OR_CROSS_CONNECT_GROUP_ID,
    CUSTOMER_BGP_PEERING_IP,
    ORACLE_BGP_PEERING_IP,
    VLAN,
    COMPARTMENT_ID,
    REGION,
    OCIRA_UPDATE_DATE
FROM OCIRA.FAST_CONNECT_CROSS_CONNECT_MAPPING_DIM_V
WHERE REGION = 'US-ASHBURN-1';

The Customer Experience Semantic Model Lineage spreadsheet and Metric Calculation Logic spreadsheet for FastConnect provide an end-to-end data lineage summary report for physical and logical relationships in your data.

For more information, see Data Lineage.

This section provides information on the subject areas with data you maintain in FastConnect. These subject areas, with their corresponding data, are available for you to use when creating and editing analyses and reports. The information for each subject area includes:

• Description of the subject area.

• Business questions that can be answered by data in the subject area, with a link to more detailed information about each business question.

• Job-specific groups and duty roles that can be used to secure access to the subject area, with a link to more detailed information about each job role and duty role.

• Primary navigation to the work area that's represented by the subject area.

• Time reporting considerations in using the subject area, such as whether the subject area reports historical data or only the current data. Historical reporting refers to reporting on historical transactional data in a subject area. With a few exceptions, all dimensional data are current as of the primary transaction dates or system date.

• The lowest grain of transactional data in a subject area. The lowest transactional data grain decides how data are joined in a report.

• Special considerations, tips, and things to look out for in using the subject area to create analyses and reports.

The subject area is:

• FastConnect
