Cable the Roving Edge Device

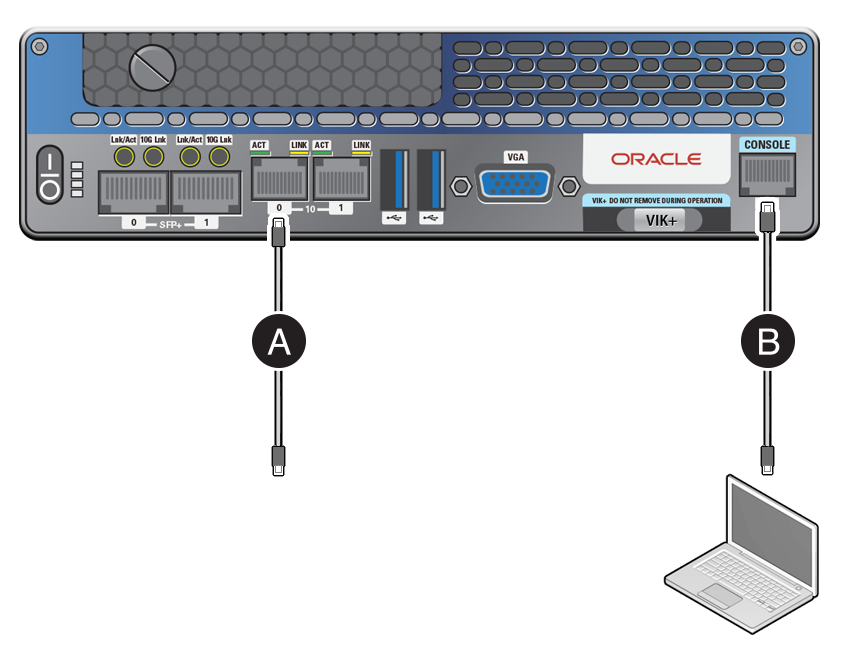

Use the following diagram to locate connectors on the rear of the Roving Edge Device 2 as you connect cables in this procedure.
Note
To meet MIL-STD-461 Rev G RE102 requirements, all Ethernet network cables attached to the Roving Edge Device must be CAT8 rated.
Connect the provided USB-to-DB-9 Ethernet cable from the device DB-9 serial console port to a USB connector on your controlling host, such as a laptop.
Roving Edge Device 2
Roving Edge Device 1
- Use a 10GBaseT RJ-45 Ethernet cable to connect the device Ethernet port to your Ethernet switch.
- Use the provided USB-to-DB-9 serial cable to connect the device serial port to a laptop.
Connect the provided power cord to the device power receptacle and to your power source, but don't power on the device yet.
